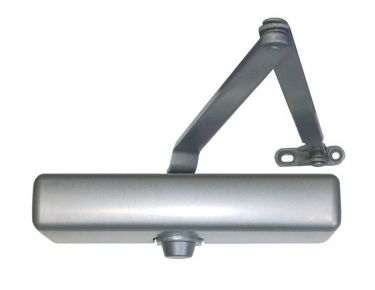

LCN 1260 Series Door Closer - Standard Duty Universal Mounting
The LCN 1260 Series combines the best features from the previous LCN 1070 and LCN 1370 series into a single versatile and economical cast iron closer, with dual mounting capability. The LCN 1261P is adjustable through spring sizes 1-5 and mounts to the most common commercial footprint. The LCN 1260 Series also features a complete line of regular and extra duty arms and LCN's peel-n-stick installation templates.
- Hinge (Pull Side) Mounting
- Top Jamb (Push Side) Mounting
- Stop Face (Push Side) Mounting
LCN 1260 Series Features and Benefits
-
Non-handed for right and left swinging doors
-
Adjustable hydraulic backcheck cushions opening swing prior to 90 degrees
-
Separate regulation of general closing speed and latching speed
-
Joints in arm and shoe adapt to uneven trim
-
Reversible shoe to boost latching power on double lever arms
UK Fire Certification in accordance with BS EN 1634-1:2014 (timber) - 120 mins.
WFRC No. 142058 - Issue 4. Valid Until 1st December 2019
EN 1154: 1996 + A1: 2002/AC:2006
CE Certified. Certification applies to All Applications
LCN 1260 Series Specifications
- Standard LCN 1260 series closer shipped with regular arm, plastic cover and wood & machine screw pack
- Non-sized cylinders (1261) for interior doors to 1372mm and exterior (perimeter) doors to 1067mm
- Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors
- Standard or optional custom powder coat finish
- Optional SRI primer for installations in corrosive conditions
- Optional Quick Fix™ bracket kit
- Surface Mounting
For interior or exterior doors. Single acting cylinder on door top rail with exposed regular arm to head frame (hinge pull side). Single acting cylinder on head frame with exposed regular arm to door top rail (top jamb push side). Single acting cylinder on door top rail with exposed regular arm to head frame (stop face push side) - Maximum Opening
Butt hinge template allows 180° with hold open points up to maximum opening with the optional hold open arm (hinge pull side & top jamb push side). 180° opening and hold open points (stop face push side) - Consult us for all pivot mounted installations
- Butt Hinges should not exceed 127mm in width
- Auxiliary Stop is recommended
- Reveal should not exceed 19mm for regular arm or 13mm for hold open arm (hinge pull side). 64mm reveal allows 180° with standard REG regular arm while 89mm allows 180° opening with the optional 1260-79LR long rod & shoe (top jamb push side)
- Stop Width minimum 25mm (stop face push side)
- Head Frame minimum 55mm or 40mm with 1260-18 plate (top jamb push side). Flush head frame requires 1260-418 PA shoe adaptor (stop face push side).
- Top Rail less than 64mm requires 1260-18 plate - plate requires 38mm minimum (hinge pull side). 44mm minimum or 64mm minimum with 1260-18 (top jamb push side). Less than 102mm from the underside of the stop requires 1260-18PA plate (stop face push side)
- Clearance minimum 73mm behind the door for 90° installation (hinge pull side)
- Bull Nose Trim requires 1260-65 soffit shoe (hinge pull side)

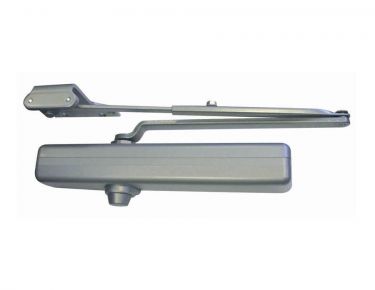

LCN 1460 Series Door Closer - Standard Duty Universal Mounting
Designed for maximum versatility, the LCN 1460 Series, available with multiple cover options, can be used for both commercial and institutional applications. This fully universal LCN closer (1461P) offers a wide variety of options and new fast & accurate installation.
- Hinge (Pull Side) Mounting
- Top Jamb (Push Side) Mounting
- Stop Face (Push Side) Mounting
Features and Benefits
-
Non-handed for right and left swinging doors
-
Adjustable hydraulic backcheck cushions opening swing prior to 90 degrees
-
Separate regulation of general closing speed and latching speed
-
Joints in arm and shoe adapt to uneven trim
-
Reversible shoe to boost latching power on double lever arms
UK Fire Certification in accordance with BS EN 1634-1:2014 (timber) - 120 mins
WFRC No. 142058 - Issue 4. Valid Until 1st December 2019
EN 1154: 1996 + A1: 2002/AC:2006
CE Certified. Certification applies to Hinge (Pull Side) Mounting OnlySpecifications
- Standard LCN 1460 series closer shipped with regular arm, plastic cover and wood & machine screw pack
- Multiple cover options include; Standard (Slim line), Full and Designer Series
- Non-sized cylinders (1461) for interior doors to 1524mm and exterior (perimeter) doors to 1220mm
- Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors
- Standard or optional custom powder coat finish. Optional plated finish on Designer Series metal cover, arm and fasteners
- Optional SRI primer for installations in corrosive conditions
- Surface Mounting
For interior or exterior doors. Single acting cylinder on door top rail with exposed regular arm to head frame (hinge pull side). Single acting cylinder on head frame with exposed regular arm to door top rail (top jamb push side). Single acting cylinder on door top rail with exposed regular arm to head frame (stop face push side) - Maximum Opening
Butt hinge template allows 180° with hold open points up to maximum opening with the optional hold open arm (hinge pull side & top jamb push side). 180° opening and hold open points (stop face push side). Optional EDA arm allows 110° opening and hold open points (stop face push side). Optional CUSH-N-STOP arm allows 100° opening and hold open points (stop face push side) - Consult us for all pivot mounted installations
- Butt Hinges should not exceed 127mm in width
- Auxiliary Stop is recommended - Except CUSH options
- Reveal should not exceed 19mm for regular arm or 13mm for hold open arm (hinge pull side), 90mm for regular arm or 64mm for hold open arm (top jamb push side)
- Stop Width minimum 25mm (stop face push side)
- Head Frame minimum 60mm or 40mm with 1460-18 plate (top jamb push side). Flush head frame requires 1460-418 PA shoe adaptor (stop face push side)
- Top Rail less than 64mm requires 1460-18 (hinge pull side). 48mm minimum or 70mm minimum with 1460-18 (top jamb push side). Less than 111mm from the underside of the stop requires 1460-18PA (stop face push side)
- Clearance minimum 60mm behind the door for 90° installation (hinge pull side)
- Delayed Action add suffix DEL to the selected closer. Delays closing from 160° down to 75° (hinge pull side), 180° down to 95° (top jamb push side) and from maximum opening down to 75° (stop face push side) - adjustable up to 60 seconds
- Bull Nose Trim requires 1460-65 soffit shoe (hinge pull side).

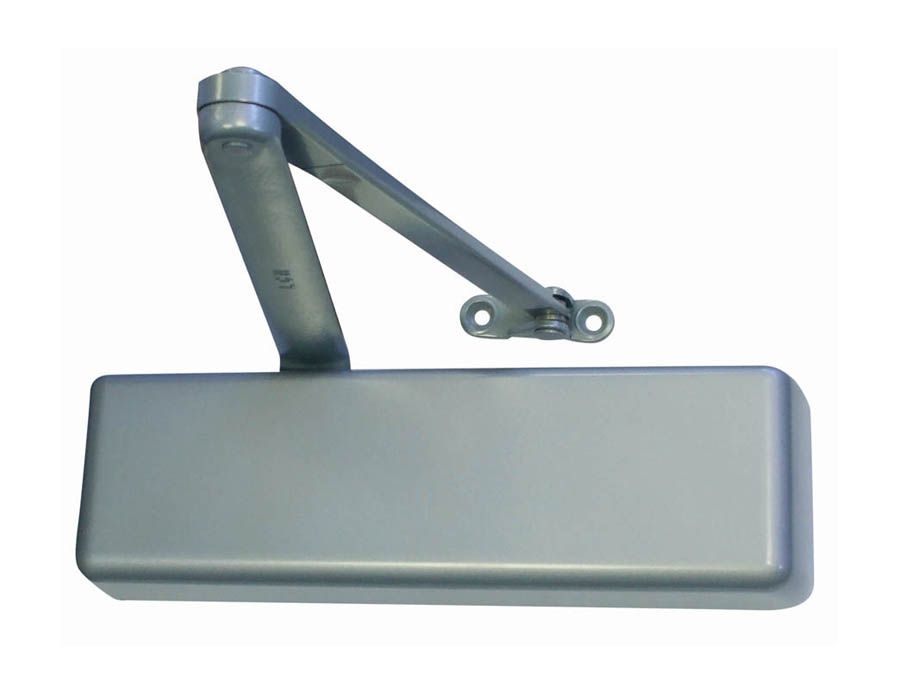

LCN 4040XP Series Door Closer - Heavy Duty Universal Mounting
The LCN 4040XP sets a new standard for reliability, longevity and value with a beefier design and extraordinary performance testing that goes far beyond industry requirements. We built the 4040XP from the inside out, combining tougher, bolder construction with proven LCN technology. The result is a closer that’s stronger, smarter and delivers remarkable value in a variety of applications.
The 4040XP is LCN’s most durable heavy duty closer designed for the most demanding, high use and abuse applications
4040XP Stronger, Smarter - Built for the Real World
- Hinge (Pull Side) Mounting
- Top Jamb (Push Side) Mounting
- Stop Face (Push Side) Mounting
Features and Benefits
- 44% increased bearing load capacity
- Strongest pinion ever- at 19mm journal diameter
- Widest bearing ever- at 16mm
- Stronger pinion teeth
- New V-shield™ seal with 20% longer life
- XP = eXtra Protection in real world applications
- Cast Iron
- Forged Steel Arm
- Double Heat Treated Steel Pinion
- All Weather Fluid
- Non-Handed
- LCN® Fast™ Power Adjust
- Fast & Accurate Installation
UK Fire Certification in accordance with BS EN 1634-1:2014 (timber) - 120 mins
UK Fire Certification in accordance with BS EN 1634-1:2014 (steel) - 60 mins
WFRC No. 142058 - Issue 4. Valid Until 1st December 2019
EN 1154: 1996 + A1: 2002/AC:2006
CE Certified. Certification applies to Hinge (Pull Side) Mounting & Stop Face (Push Side) Mounting OnlySpecifications
- LCN 4040XP closer shipped with regular arm, standard plastic cover and self reaming & tapping screws
- Non-sized cylinders 4041 for interior doors to 1524mm and exterior (perimeter) doors to 1220mm
- Closer can mount hinge side, top jamb, or parallel arm (with PA bracket) on either right or left swinging doors
- Standard or optional custom powder coat finish
- Optional plated finish on metal cover, arm and fasteners
- Optional SRI primer for installations in corrosive conditions is available with powder coat only
- 4040XP can be used with all 4040 accessories
- Surface Mounting
For interior or exterior doors. Single acting cylinder on door top rail with exposed regular arm to head frame (hinge pull side). Single acting cylinder on head frame with exposed regular arm to door top rail (top jamb push side). Single acting cylinder on door top rail with exposed regular arm to head frame (stop face push side) - Maximum Opening
Butt hinge template allows 120° with hold open points between 90° and 120° with the optional hold open arm (hinge pull side & top jamb push side). 180° opening and hold open points with all except CUSH-N-STOP arms (stop face push side). 110° opening and optional hold open with CUSH-N-STOP arms. - Consult us for all pivot mounted installations
- Butt Hinges should not exceed 127mm in width
- Auxiliary Stop is recommended - Except CUSH options Reveal should not exceed 19mm (hinge pull side), 65mm (top jamb push side)
- Stop Width minimum 25mm or 38mm with CUSH-N-STOP arm (stop face push side)
- Head Frame minimum 100mm or 45mm with 4040-18TJ & 4040-18G plate (top jamb push side). Flush head frame requires 4040-418 PA shoe adaptor (stop face push side)
- Top Rail minimum 95mm or 51mm with 4040-18 plate (hinge pull side), 32mm or 57mm & 76mm with 4040-18TJ & 4040-18G
respectively (top jamb push side), 137mm from underside of stop or 51mm with 4040-18PA plate (stop face push side) - Clearance minimum 60mm behind the door for 90° installation (hinge pull side)
- Delayed Action add suffix DEL to the selected closer
Delays closing from 120° down to 70° (hinge pull side), 80° (top jamb push side) and 75°*(stop face push side) - adjustable up to 60 seconds. * for 90° template - Bull Nose Trim requires 4040-65 soffit shoe (hinge pull side)
- Standard Finish - US28 powder coated silver
