Von Duprin Exit Hardware and Panic Bolts

Von Duprin 22 Rim Exit Device

Characteristics

Specifically designed for use in areas where frequent abusive treatment can be expected. The Von Duprin 22 series is constructed from heavy gauge rolled steel section with the proven heavy duty touch bar mechanism that has been used so successfully in all architectural grade Von Duprin touch bar devices.

UK Fire Certification in accordance with EN 1634-1:2000 (timber)
WFRC No. C132276 120mins BS EN 1125:1997

CE Certified

Features & Benefits

• Device Functions - Ships ready for all functions; EO, DT, NL, TP, & L
• Universal - Non-handed, suits LH & RH doors
• Device Lengths - Standard device suits doors to 915mm, optional device suits doors to 1220mm
• Finishes - SP28 (689) Sprayed Silver, SP313 (695) Sprayed Dark Bronze
• Strikes - Ships with standard 299 roller strike, optional strikes are available to suit alternative frame details (consult Relcross for details)
• Dogging Feature - Hex Key Dogging keeps the latch bolt held back for free swinging operation, LD Less Dogging is available to special order
• Electric Options -
  LX Latchbolt Monitor Switch
  RX Touch Bar Monitor Switch
  RX2 Double Touch Bar Monitor Switch (RX2 feature uses two RX switches)
  ALK Alarm Exit Kit
• Fasteners - Includes fixings for both metal and timber doors 19mm < 57mm thick with sex bolts available to special order - 425 for bolt through fixings
• Latch Bolt - Easy action friction free deadlocking latches cannot be depressed from the outside - 19mm throw

Von Duprin 98/99 Rim Exit Device

Characteristics

The flagship range of architectural grade escape devices includes the Von Duprin 98 Series with its smooth mechanism case and the established Von Duprin 99 Series with its familiar grooved design. The two styles are mechanically and dimensionally identical and provide a wide selection of additional features to suit many applications.

The Quiet One®

A fluid dampener decelerates the touch bar on its return stroke and eliminates most noise associated with exit device operations. Furnished on all 98/99 Series Exit Devices

UK Fire Certification in accordance with EN 1634-1:2000 (timber)
WFRC No. C132276 120mins BS EN 1125:1997

CE Certified.

Features & Benefits

• Device Functions - Ships ready for functions; EO, DT & NL - for TP, K & L remove the NL drive screw from the reverse of the device
• Universal - Non-handed, suits LH & RH doors except when SD (Special Dogging) & -2 (Double Cylinder) features are included
• Device Lengths - Standard device suits doors to 915mm, optional device suits doors to 1220mm
• Finishes - US28 (628) Anodized Aluminium. Alternative plated finishes are available to special order (consult Relcross for details)
• Strikes - Ships with standard 299 roller strike, optional strikes are available to suit alternative frame details (consult Relcross for details)
• Dogging Feature - Hex Key Dogging keeps the latch bolt held back for free swinging operation. Options available to special order - CD Cylinder Dogging, SD Special Dogging & LD Less Dogging
• Electric Options -
  LX Latchbolt Monitor Switch
  RX Touch Bar Monitor Switch
  RX2 Double Touch Bar Monitor Switch
  ALK Alarm Exit Kit
  EL Electric Latch Retraction
  PN Pneumatic Latch Retraction
  CX Chexit Delayed Exit
• Fasteners - Includes fixings for both metal and timber doors 19mm < 57mm thick with sex bolts available to special order - 425 for bolt through fixings
• Latch Bolt - Easy action friction free deadlocking latches cannot be depressed from the outside - 19mm throw

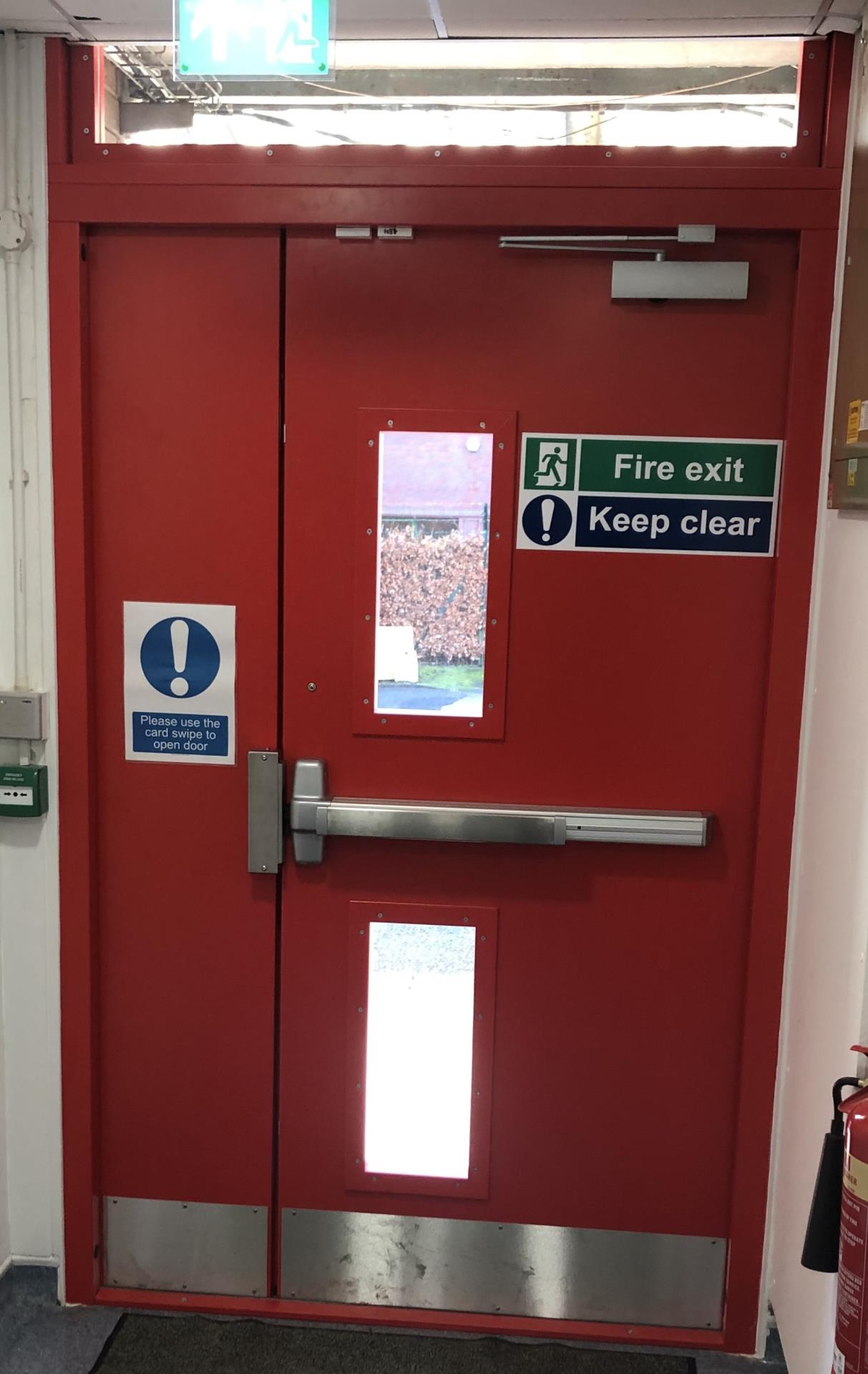

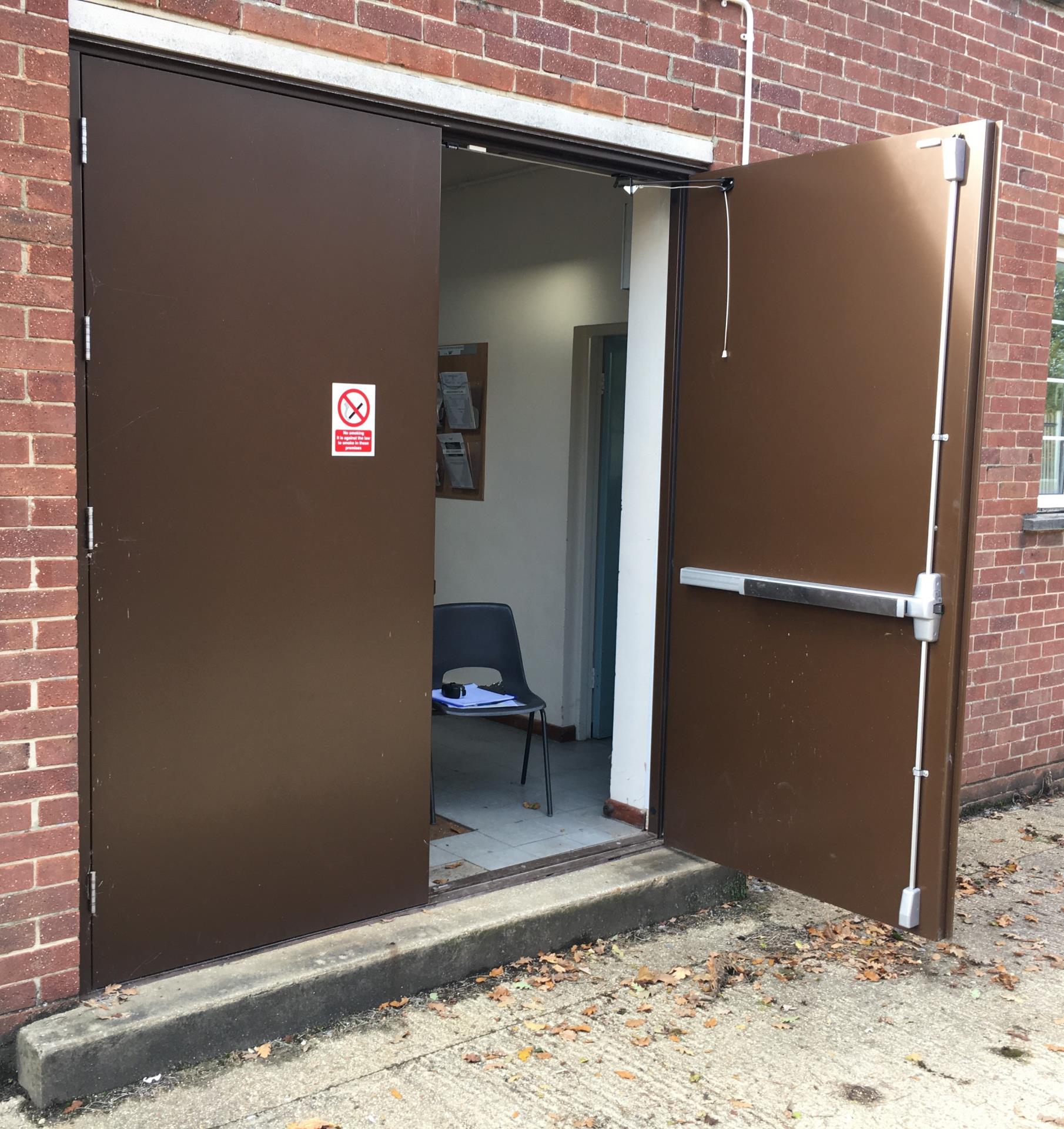

Von Duprin 99 series exit hardware fitted to powder coated steel security doors:
